상품 정보
상품 기본설명
HV Transistor,8KVdc,120A
상품 상세설명

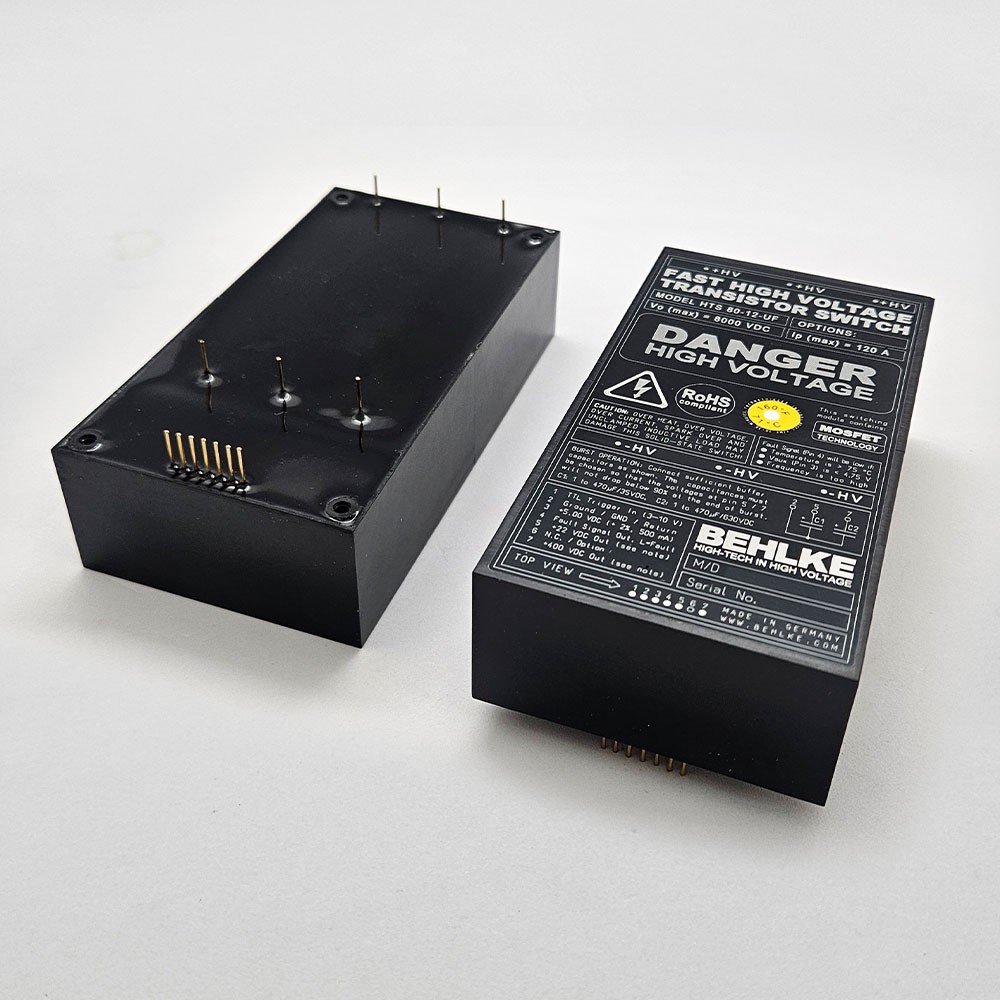

Behlke HTS80-12-UF
Ultra Fast High Voltage Transistor Switch 초고속 고전압 트랜지스터 스위치
The solid-state switches of the HTS-UF (Ultra Fast) series have been specially designed for high voltage pulse generators
with a short pulse duration and extreme edge steepness.
The HTS-UF switches are distinguished above all by a rise time which remains widely constant over a large range of operating voltages and loads.
For low voltage operation a special stage tapping option is available which allows fast switching also in the hundred volt range.
In contrast to conventional high voltage switches, e.g. with cold cathode tubes, the transistor switches of the HTS UF series have a very low jitter
and the lifetime typical of semiconductor devices.
At the input side all that is needed is a TTL-compatible control signal and a 5-volt auxiliary voltage.
The internal driving circuit takes care of signal conditioning, auxiliary voltage monitoring, frequency limitation and temperature protection.
